Product Details

NAME SPECIFICATION APPLICATION MODEL NUMBER
Manual walking wire clamp MK-V5034 Characteristics
stainless steel,vacuum harden treatment and deeply cold treatment to HRC50~55 before doing the grinding process.

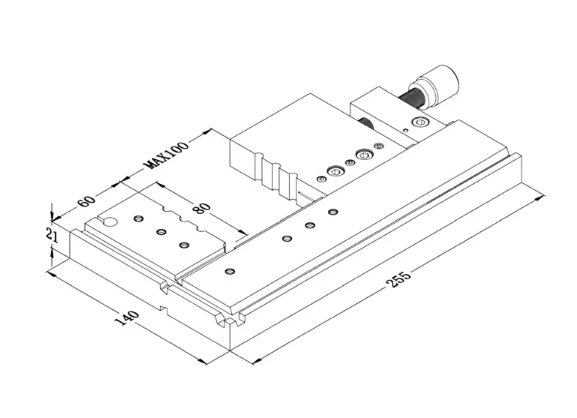

Size: 255*140*21MM
Parallelism Within 0.003/100mm
Squareness Within 0.005/100mm
Clamping: 80-100mm
WEDM MK-V5034
Manual walking wire clamp MK-V5034

Product Number : MK-V5034

Category : EDM jig tools and clamps

Manufacturer : Mykeenedm, lnc.
